Product Description

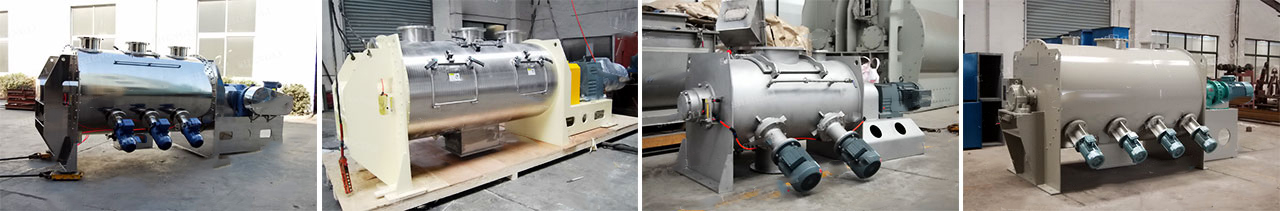

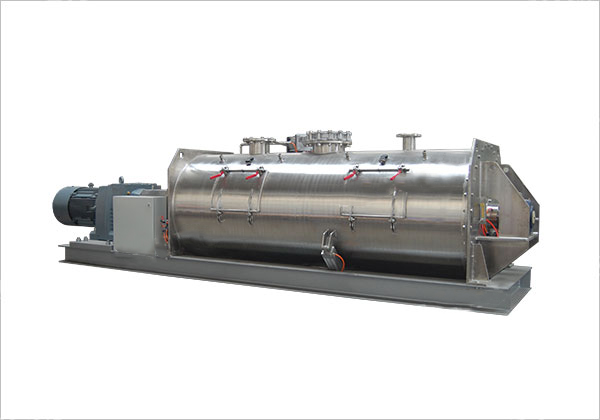

The plow blade mixer can handle the mixing of solid powder and granular materials, and is suitable for batch mixing processes with added liquids. It is widely used in food, chemical, and building materials, and is particularly significant in industries such as food additives, pre mixed mortar, composting technology, sludge treatment, rubber and plastic, and special building materials. Its strong cutting effect enables it to have high-performance mixing quality.

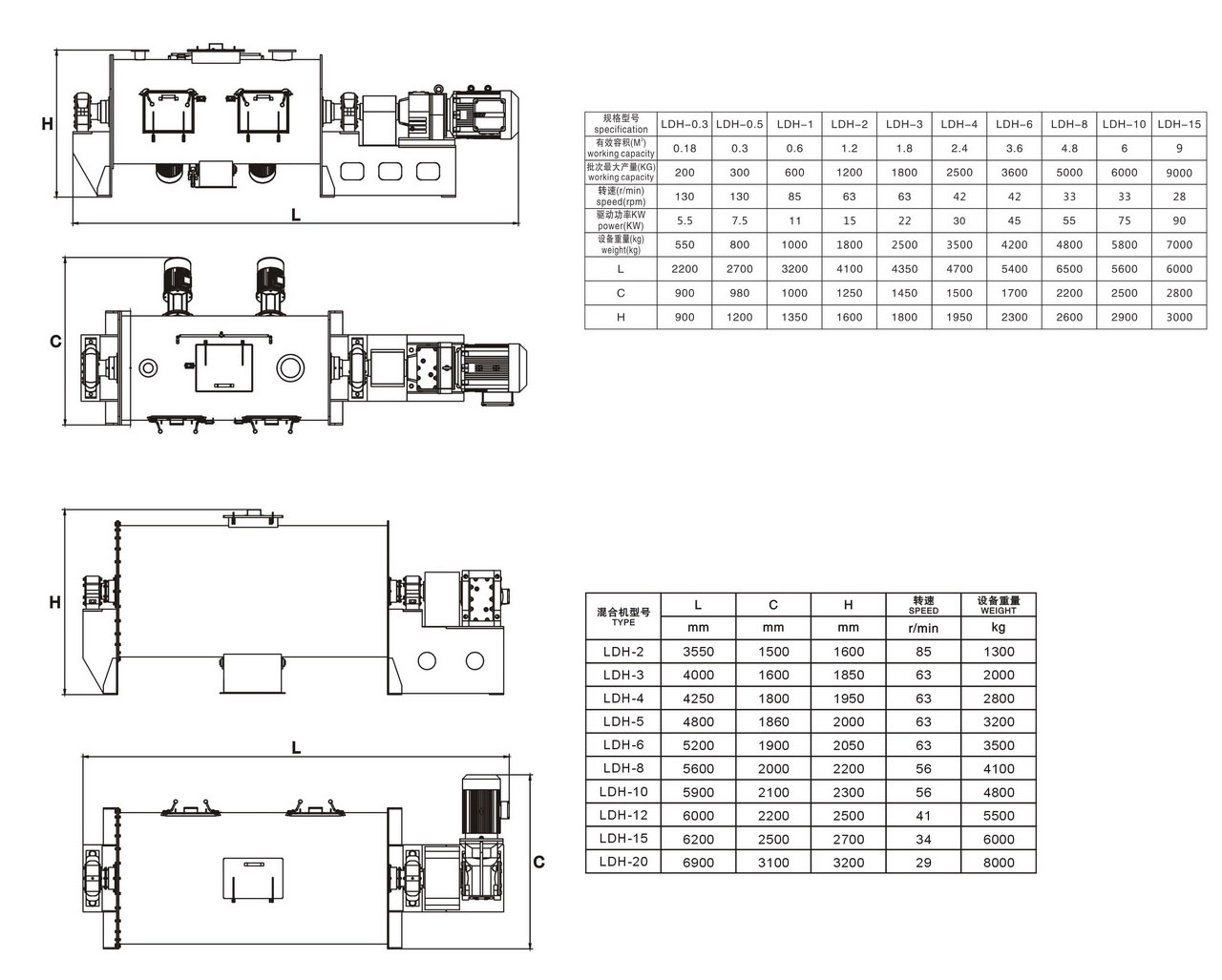

technical parameter

The full volume of the equipment is 0.3-30 cubic meters

Each batch has a processing capacity of 0.1-20 cubic meters

0.3-15 tons of processed materials per batch

The mixing time used is 3-15 minutes

Drive configuration power 3KW-160KW

The equipment material can be 316L, 321, 304, or carbon steel

1、 Material selection plan

The mixer can be customized with carbon steel, manganese steel, 304 stainless steel, 316L stainless steel, 321 stainless steel, and other materials, and different materials can also be used in combination; When selecting equipment materials, distinguish between parts that come into contact with materials and parts that do not come into contact with materials; Functional coatings or protective layers such as anti-corrosion, anti bonding, isolation, and wear resistance can also be added specifically inside the mixer; Stainless steel surface treatment can be divided into sandblasting, wire drawing, polishing, mirror surface and other treatment methods, and can be applied to different parts of use separately;

1: The body is made of all stainless steel with mirror treatment on both the inner and outer surfaces. 2. The body is made of all stainless steel with sandblasting and matte treatment. 3. The body is made of stainless steel in contact with the material. 4. The body is made of carbon steel

2、 Drive configuration

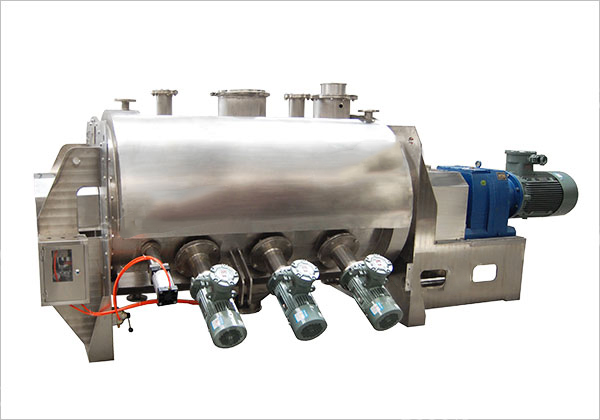

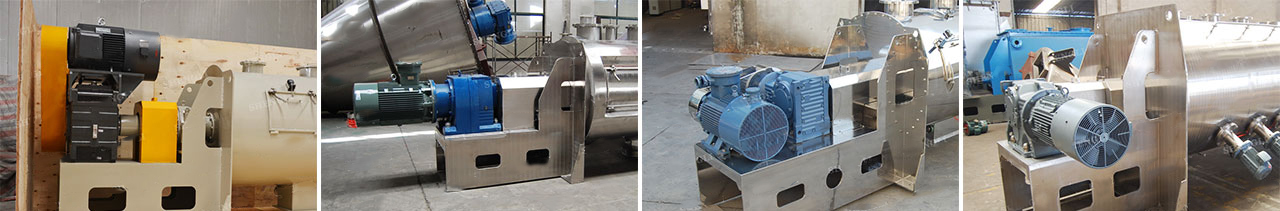

The mixer is equipped with drive devices with different capabilities, powers, and output speeds based on material properties, starting methods, and mixing methods. The selection of drive motors includes: ordinary motors, explosion-proof motors, variable frequency motors, high-efficiency energy-saving motors, high protection level motors, and motors under different voltages; Commonly used reducers: R, K, F series gear reducers, cycloidal pinwheel reducers, universal gear reducers, planetary gear reducers; Common connection methods: direct connection, belt pulley connection, and hydraulic coupling connection.

3、 Efficient mixing device

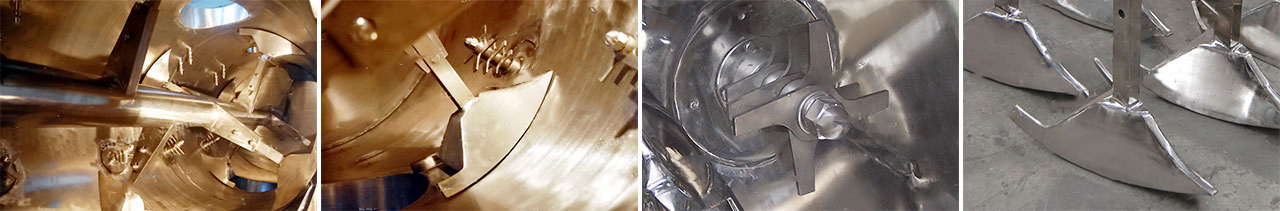

The plow type blade of the plow blade mixer is detachable, which can achieve the effect of rapid replacement; The plow blade undergoes wear resistance treatment, which is more suitable for working conditions with faster wear. The mixer can also be equipped with different mixers according to different material properties. Spindle mixer: ordinary plow blade, serrated plow blade, scraper razor; High speed shear flying knife: multi blade cross knife, double leaf lotus knife;

4、 Discharge device

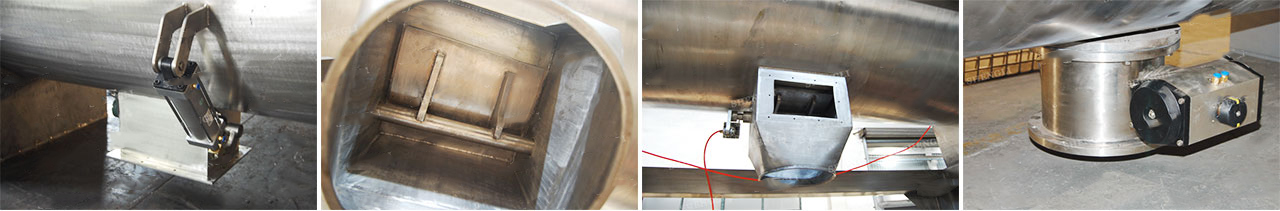

The horizontal plow blade mixer is usually equipped with a pneumatic curved flap valve. When the valve is closed, the curved flap of the valve fully fits the curved surface of the cylinder. During the mixing process, there are no excess mixing dead corners, making the mixed material more uniform. The drive of valves can be divided into three types: manual, pneumatic, and electric. Valves for reference include powder spherical valve, roller valve, plum blossom dislocation valve, powder butterfly valve, rotary feeding valve, etc.

5、 Auxiliary components

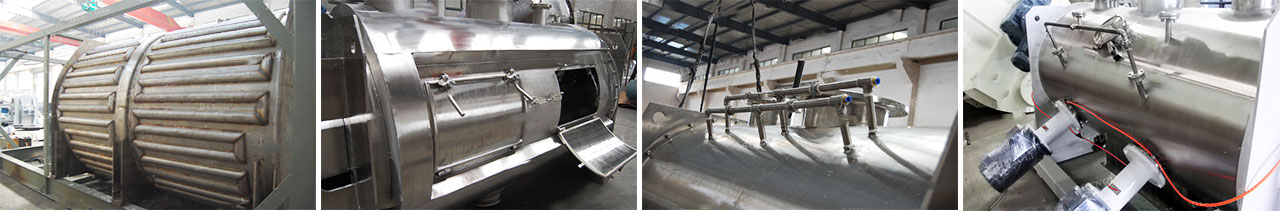

The mixer can be equipped with various components for use, including coil steam jacket, honeycomb pressure jacket, circulating medium jacket, online sampling valve, high-speed flying knife, temperature detection, weighing system, dust removal and purification components. The jacket of the mixer adopts different forms of jackets according to different heat source media, which can be heated and cooled, with high temperatures within 250 degrees Celsius. When a small amount of liquid is added, a liquid spraying spray device is required to facilitate the uniform dispersion and mixing of the liquid in the main material. The spraying system consists of three basic components: a pressure source, a liquid storage tank, and a nozzle.

6、 Dynamic shaft seal

The mixer is designed with three sealing modes: packing seal, combined gas seal, and mechanical seal; Used to solve the spindle sealing of particle, powder, micron level powder, liquid, and slurry states.

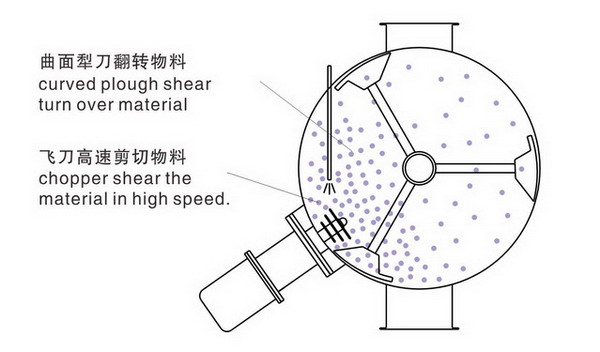

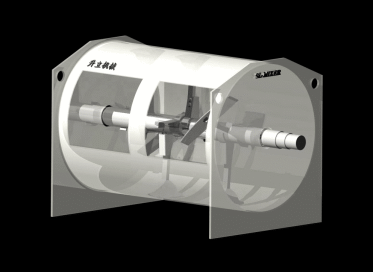

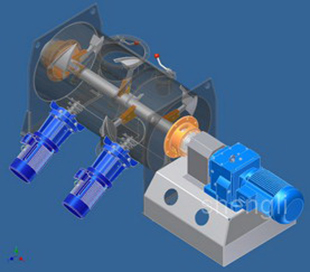

The plow blade mixer is a single shaft forced mixing equipment, with multiple sets of plow blade mixers installed on the main shaft and continuously installed in a staggered manner. The structure avoids mixing dead corners, and during operation, uninterrupted vortex centrifugal force is generated. The misaligned plow blades continue to stir, and the vortex centrifugal material flow continuously overlaps and disperses, causing the material to boil and form a convective circulation, rapidly stirring the material. Agglomerated materials such as fibers or wet agglomerated or liquid agglomerated powders are dispersed and separated by high-speed flying knives installed in the plow mixer, combined with the convective circulation formed by the plow mixer when stirring the materials. The high-speed flying knife is installed at a 45 degree downward angle on the side of the plow mixing machine barrel, and the blade extends into the barrel. During mixing, the material is driven to the effective range of the flying knife by the plow knife, and is cut at high speed by the flying knife.

1、確定每批次混合的物料體積，范圍在0.1-20立方米，選取相應規格的設備。
2、選取設備制作材質，材質分：與物料接觸部分、不與物料接觸部分，設備其它部件保持原有材質。
   材質依據物料性質、工況要求、衛生級別等因素決定，常規有碳鋼、304/316L/321不銹鋼材質選定后依據要求確定表面處理要求。
3、根據物料的比重、流動性等性質，以及啟動標準來確定配置的驅動能力。 啟動標準分：重載啟動、空載啟動。
4、依據實際工藝情況，增加輔助功能組件，如噴液、加熱/冷卻、等。
5、設計設備的開口要求，如加料口、清理口、排氣孔等
6、選擇出料模式以及驅動方式，分手動、氣動、電動
重要提示：設備的選型是比較重要的環節，應盡可能提供物料的詳細信息，以及工藝安排，以便我公司專業人員為您提供優質的技術服務。

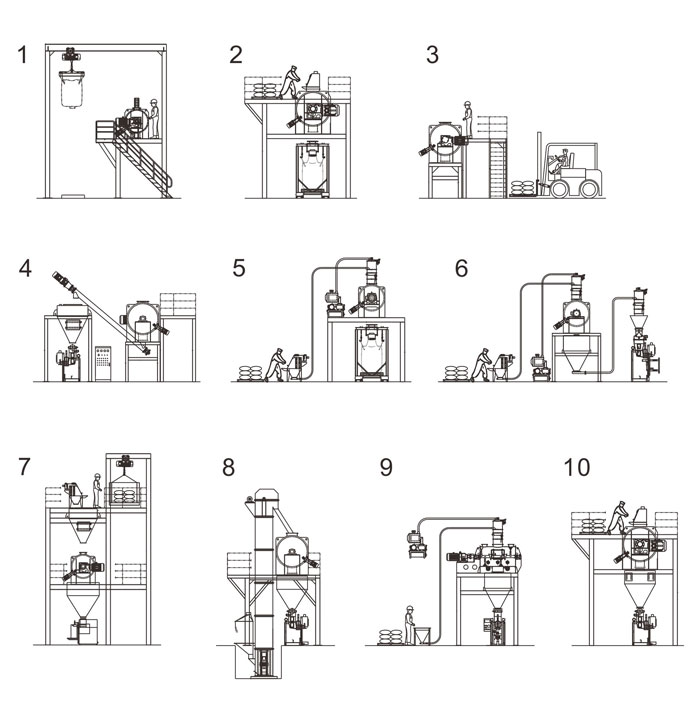

configuration1：Using ton bags of raw materials, crane lifting, combined with dust collector for direct feeding； configuration2：Erect a multi-layer platform, manually remove bags for feeding, mix and discharge materials, and use a ton belt packaging machine； configuration3：Easy to use mixing equipment, direct feeding and discharging, equipped with forklift for loading and unloading； configuration4：Using a manual feeding platform, the materials are mixed and spiral lifted into the finished product warehouse, followed by packaging equipment； configuration5：Adopting vacuum feeding method, ground feeding, mixing and discharging, using a ton belt packaging machine； configuration6：Multi stage vacuum feeding and transportation, mixed and stored before packaging； configuration7：Multi layer operation platform design, cargo elevator feeding, feeding, warehousing, mixing, storage, packaging, integrated tower structure； configuration8：Using a bucket elevator for feeding, mixing, warehousing, and packaging； configuration9：Vacuum feeding machine feeding, mixing, warehousing, packaging, integrated upper and lower structure； configuration10：Manual feeding, mixing, warehousing, packaging, and integrated upper and lower structure；
