Efficient wire rod mixer

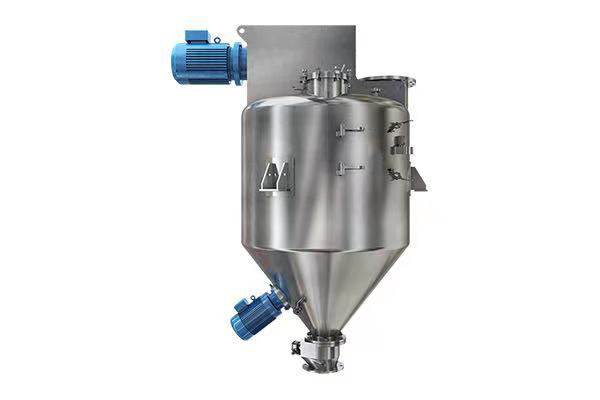

The GPH series mixer mainly consists of three parts: mixing cylinder, mixing screw, and flying knife group; The middle spiral rotates in a circumferential direction, and the flying knife on the cylinder side rotates at high speed to cut and crush the condensed material. This series of mixers is suitable for the mixing of particularly fine materials or the addition of granular materials, and for the mixing of highly uniformly distributed fine powder, paint, and other liquid and semi liquid materials. The processing techniques include: pressurization, vacuum blending, reaction, and bonding....

Consult

National Hotline18633835669

Details

The GPH series mixer mainly consists of three parts: mixing cylinder, mixing screw, and flying knife group; The middle spiral rotates in a circumferential direction, and the flying knife on the cylinder side rotates at high speed to cut and crush the condensed material. This series of mixers is suitable for the mixing of particularly fine materials or the addition of granular materials, and for the mixing of highly uniformly distributed fine powder, paint, and other liquid and semi liquid materials. The processing techniques include: pressurization, vacuum blending, reaction, and bonding.

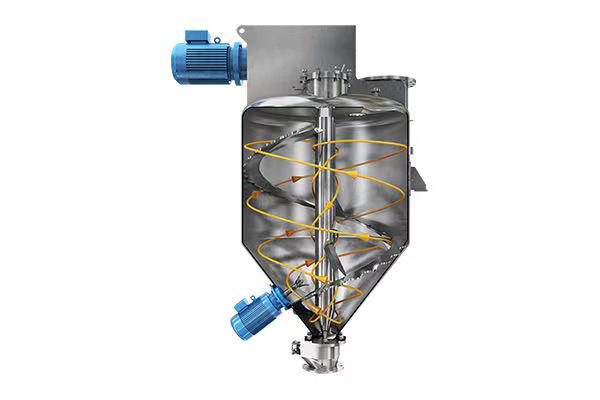

	A、Cleaning of mixing components and cylinders The main mixing component is a vertical spiral belt; The side quick opening large door makes the cylinder cleaning work convenient and efficient.
	B、Driving form The mixer drive assembly and feeding port are arranged on the top of the mixer, and the driving mode is generally the motor direct connected gear reducer.
	C、Pneumatic discharge The pneumatic discharge port arranged at the bottom of the cylinder ensures that the discharge is clean and fast with less residue。
	D、Auxiliary mixing The throwing knife arranged on the side of the cylinder is directly connected with the motor to assist in mixing and dispersing the fast materials。
	E、Spray pipe The liquid spraying pipe penetrating from the main shaft of the reducer goes all the way to the center of the mixing shaft. The figure shows the rotary joint of the liquid inlet。
	F、Spraying effect The spray pipe connected from the hollow spindle rotates with the spindle, making the spray effect of the atomizing nozzle better。
